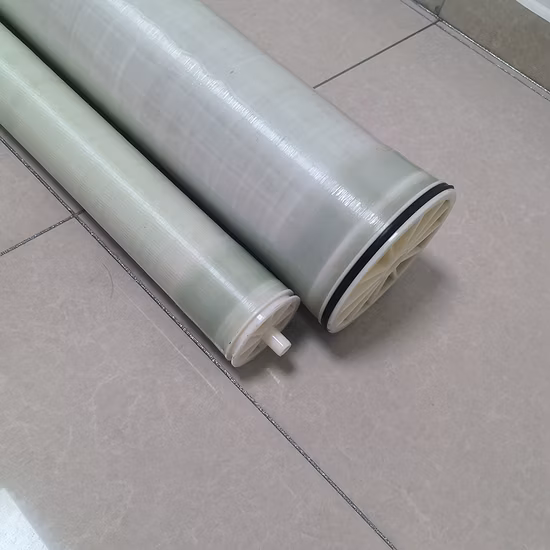

Commercial Reverse Osmosis RO Membrane Element 2540

Basic Info

Model NO.	BW-8040
Pore Diameter	0.0001 Micron
Motive Force	Pressure
Color	White
Rejection	99.6%
Perforamance	Efficient Filtration
Certifiction	CE, RoHS, ISO9001
Activated Area	37 Square Meter
Capacity	10000gpd
Feed Water pH	3-11
Recovery Rate	15%
Width of Flow Path	34 Mil
Transport Package	Individual Carboard
Specification	RO membrane sheet
Trademark	Agua Benifit
Origin	China
HS Code	8421991000
Production Capacity	5000 PCS/Month

Product Description

Detailed PhotosProduct Parameters

Model	A	B	C	D
	mm(in)	mm(in)	mm(in)	mm(in)
AGB/AGLP-8040	1016(40)	201(7.9)	29(1.125)	-
AGB/AGLP-4040	1016(40)	96(3.8)	19(0.75)	27(1.05)

Model Item		Parameter
		AGB-8040	AGB-4040	AGLP-8040	AGLP-4040
Parameters	Material	Aromatic polyamide
	Structure	Spiral-wound
	Effective Membrane Area(m²)	37	7.6	37	7.6
	Thickness of the inlet grid(mil)	34
Performance	Test Solution	2000mg/L NaCl		1500mg/L NaCl
	Operating Pressure(MPa)	1.55		1.05
	Test temperature(ºC)	25
	Recovery(%)	15%
	PH	6.5~7
	Permeate Flow Rate(m3/d)/GPD	38/10000	7.6/2000	40/10500	8/2100
	Rejection(%)	99.5		99.0
Application Limits	Max. Operating Pressure((MPa)	4.1/600
	Max. Feed Flow(m3/h)/GPM	17/75	3.6/16	17/75	3.6/16
	Feed Temperature Range(ºC)	5~45
	Feed PH range	3~11
	Cleaning PH range	2~12
	Max. Turbidity NTU	1.0
	Max.SDI15	5
	Residual Chlorine Control	<0.1
	Max. Pressure Drop / Element	15

AGUA BENIFIT Reverse osmosis membrane are specially developed for desalination of medium and high salinity raw water, with high desalination rate and stable operation. It can be widely used in coal chemical industry, boiler feedwater, water reuse and material concentration. AGBW model has a very high desalination rate of sodium chloride, the product is suitable for high salt concentration water sources with high chemical crosslinking and chemical cleaning resistance. AGLP is a reverse osmosis membrane specially developed for the removal of inorganic salts and organic small molecules, characterized by low operating pressure and high desalination rate, and is suitable for desalination treatment of lower salinity raw water.

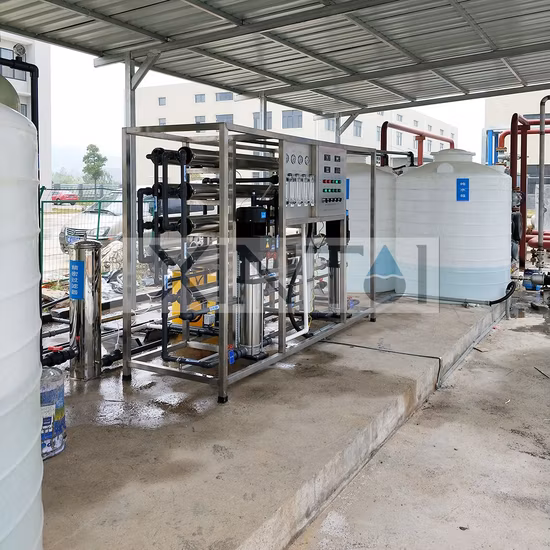

Typical Process

Application

Case ReferenceFAQ

Q: How to buy your products?

A: we need some essential information include sewage sources, sewage quality ( COD, BOD,SS),Required Filtered water quality, designed technological process, site engineering conditions (contact us for details),then we will design the suitable solutions for you and prepare to give you best price. Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L. Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities. Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will be higher for which we can discuss as per the specific orders. Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also provide guide to your workers how to use it and how to maintain it. Q:What's the certification do you have?
A: We have ISO9001, OHSAS18001, ISO14001 Certifications.
